TTC 40mm Adjustable Aluminium Door Threshold T-Bar
Description
TTC 40mm Aluminium Door Threshold T-Bar Trim – Adjustable Easy Clip
920mm Adjustable Transition Profile with Easy Clip & Pivot System
Create a neat transition between adjoining floor coverings with the TTC 40mm Aluminium Door Threshold T-Bar Trim. Designed with an adjustable Easy Clip system, this profile can accommodate different flooring heights while providing a clean and professional finish across doorways and floor joints.
The 40mm-wide aluminium cover strip bridges the gap between two floor coverings and is suitable for compatible wood, laminate, vinyl, tile, carpet and other interior flooring types. Its pivoting design helps the top profile adapt where the two floor surfaces are not perfectly level.

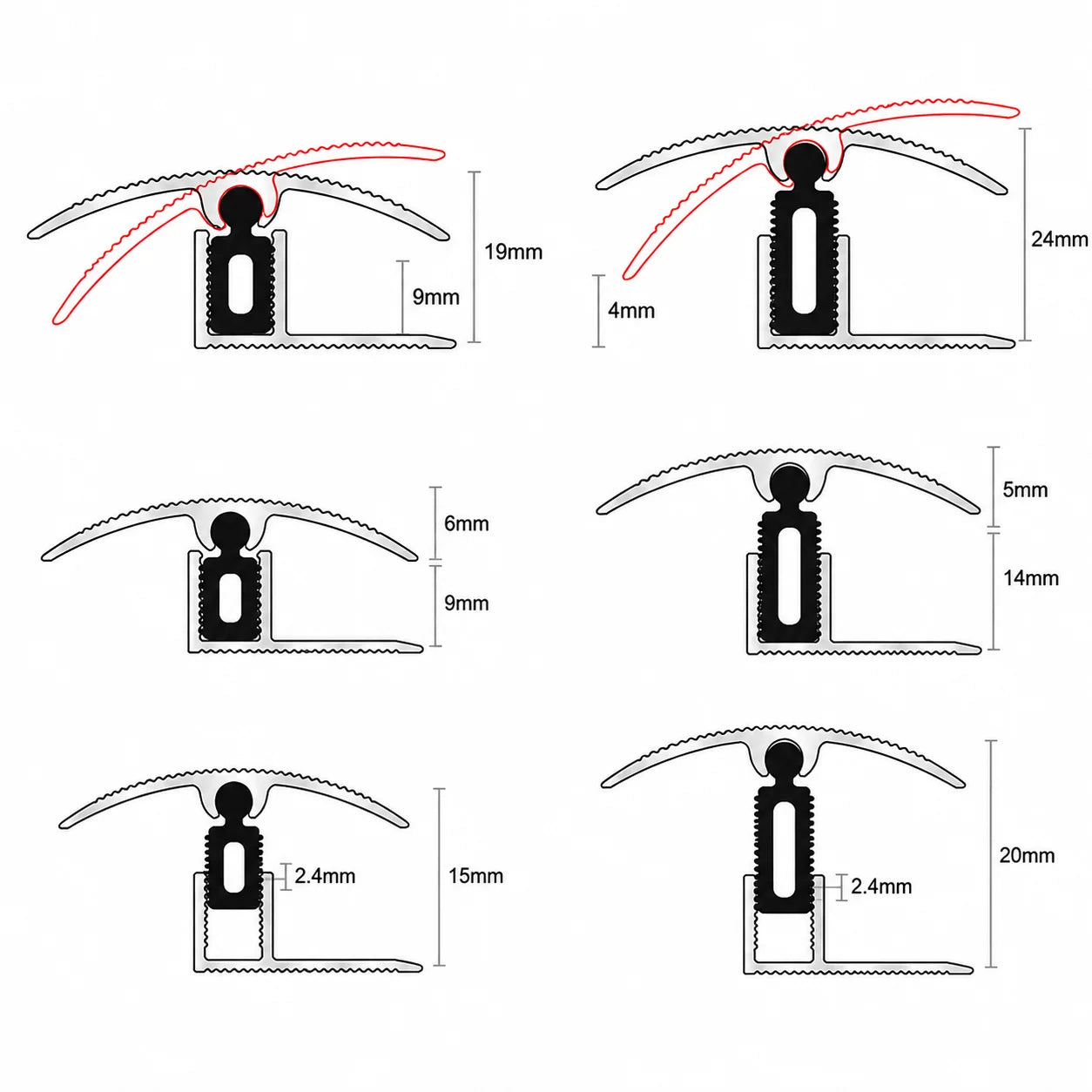

For same-level installations, the system is suitable for flooring heights from approximately 9mm to 20mm. It can also accommodate a maximum floor-height difference of up to 24mm, making it useful for transitions between flooring materials of different thicknesses.
Supplied in a 920mm length, the profile includes small and large clips to support different installation heights. The aluminium can be cut to size using a standard hacksaw before fitting.
Key Features
- TTC adjustable aluminium T-bar threshold
- 40mm-wide cover profile
- 920mm length
- Easy Clip, Easy Fit system
- Adjustable-height design
- Pivoting cover profile
- Suitable for same-level flooring from 9mm to 20mm
- Accommodates up to 24mm maximum floor-height difference
- Supplied with small and large clips
- Suitable for wood flooring
- Compatible with laminate and vinyl
- Suitable for tile and carpet transitions
- Durable aluminium construction
- Helps bridge gaps between adjoining floors
- Can be cut to the required doorway width
- Suitable for wood and concrete subfloors with appropriate fixing
- Provides a neat professional transition finish
Product Specifications
| Specification | Details |
|---|---|
| Product Type | Adjustable aluminium T-bar door threshold trim |
| Model / Profile | TTC |
| Width | 40mm |
| Length | 920mm |
| Approximate Length | 36.22 inches |
| Material | Aluminium |
| Profile Style | T-bar / transition cover strip |
| Adjustment System | Easy Clip with pivot design |
| Same-Level Floor Height Range | 9mm to 20mm |
| Maximum Height Difference | Up to 24mm |
| Clips | Small and large clips included |
| Suitable Flooring | Wood, laminate, vinyl, tile, carpet and compatible floor coverings |
| Main Fixing Method | Mechanical fixing with suitable screws |
| Alternative Base Fixing | Contact adhesive or suitable nails where appropriate |
| Can Be Cut to Size | Yes |
| Recommended Cutting Tool | Standard hacksaw |
| Main Function | Covering floor joints and transitioning between floor coverings |
Benefits of This Adjustable Door Threshold
Adjustable Height System
The Easy Clip system allows the cover profile to sit at different heights, making it suitable for floors that vary in thickness.
Handles Uneven Floor Levels
The pivoting design allows the top strip to adjust where adjoining floors are not perfectly level, with a maximum height difference of up to 24mm.
Suitable for Multiple Flooring Types
The profile can be used between compatible wood, laminate, vinyl, tile and carpet flooring, making it useful for a wide variety of interior transitions.
Small and Large Clips Included
Different clip sizes allow the system to accommodate varying flooring heights and help achieve a secure connection between the cover and base.
Clean 40mm Cover Strip
The wide aluminium top profile bridges the floor joint neatly and helps conceal the expansion or transition gap beneath.
Applications
This TTC adjustable aluminium threshold is suitable for:
- Doorway transitions
- Wood-to-wood flooring
- Laminate-to-laminate transitions
- Laminate-to-tile joints
- Wood-to-tile transitions
- Vinyl-to-laminate flooring
- Carpet-to-hard-floor transitions
- Same-level floor joints
- Floors with different finished heights
- Residential interiors
- Offices and commercial interiors
- Flooring refurbishment projects
- Replacement threshold profiles
- New flooring installations
Installation Guide
Easy Clip Installation
- Measure the doorway or floor joint carefully.
- Check that the 40mm cover strip is wide enough to bridge the gap between both flooring surfaces.
- Mark the required length on the 920mm aluminium profile.
- Cut the profile to size using a standard hacksaw if required.
- Smooth any sharp cut edges with a suitable metal file.
- Position the aluminium base centrally between the two floor coverings.
- Secure the base using appropriate screws or other suitable mechanical fixings for the subfloor.
- Where appropriate for the substrate, the supplied installation guidance also allows contact adhesive or suitable nails for securing the base.
- Select the appropriate small or large clips for the required flooring height.
- Slide the clips onto the underside of the cover strip.
- Position the first clips approximately 2–3cm from each end.
- Space the remaining clips evenly along the profile.
- Align the clips carefully with the channel in the base.
- Apply even downward pressure to begin locking the clips into position.
- Use a rubber mallet to gently tap the cover strip until it is firmly seated.
- Check that the profile follows the required floor height and pivots correctly where the two surfaces differ.
- Make sure the finished threshold is secure before allowing regular foot traffic.
The track is designed for a tight fit. If a clip is particularly difficult to insert, the supplied installation guidance recommends temporarily inserting a red clip upside down and gently tapping it to slightly open the slot before fitting the profile normally.
Why Choose This TTC Adjustable Aluminium Door Threshold?
The TTC 40mm threshold is a practical option where adjoining floors differ in thickness or where a fixed-height transition profile may not provide a suitable fit. Its clip and pivot system allows the cover strip to adjust to the finished floor levels while maintaining a neat appearance.
With a 920mm aluminium profile, small and large clips and compatibility with a wide range of flooring materials, it is suitable for both new flooring installations and refurbishment projects.
Frequently Asked Questions
What size is the TTC threshold?
The profile is 40mm wide and 920mm long.
What flooring heights can it accommodate?
For same-level flooring, it is suitable for finished floor heights from approximately 9mm to 20mm.
What is the maximum height difference between two floors?
The adjustable system can accommodate a maximum height difference of up to 24mm between adjoining floor surfaces.
Are different clips included?
Yes. The system is supplied with small and large clips to help accommodate different flooring heights.
Can the aluminium threshold be cut to size?
Yes. The 920mm aluminium profile can be shortened using a standard hacksaw and the cut edge can then be smoothed with a suitable metal file.
