40mm Adjustable Aluminium Carpet Door Threshold TTG
Description

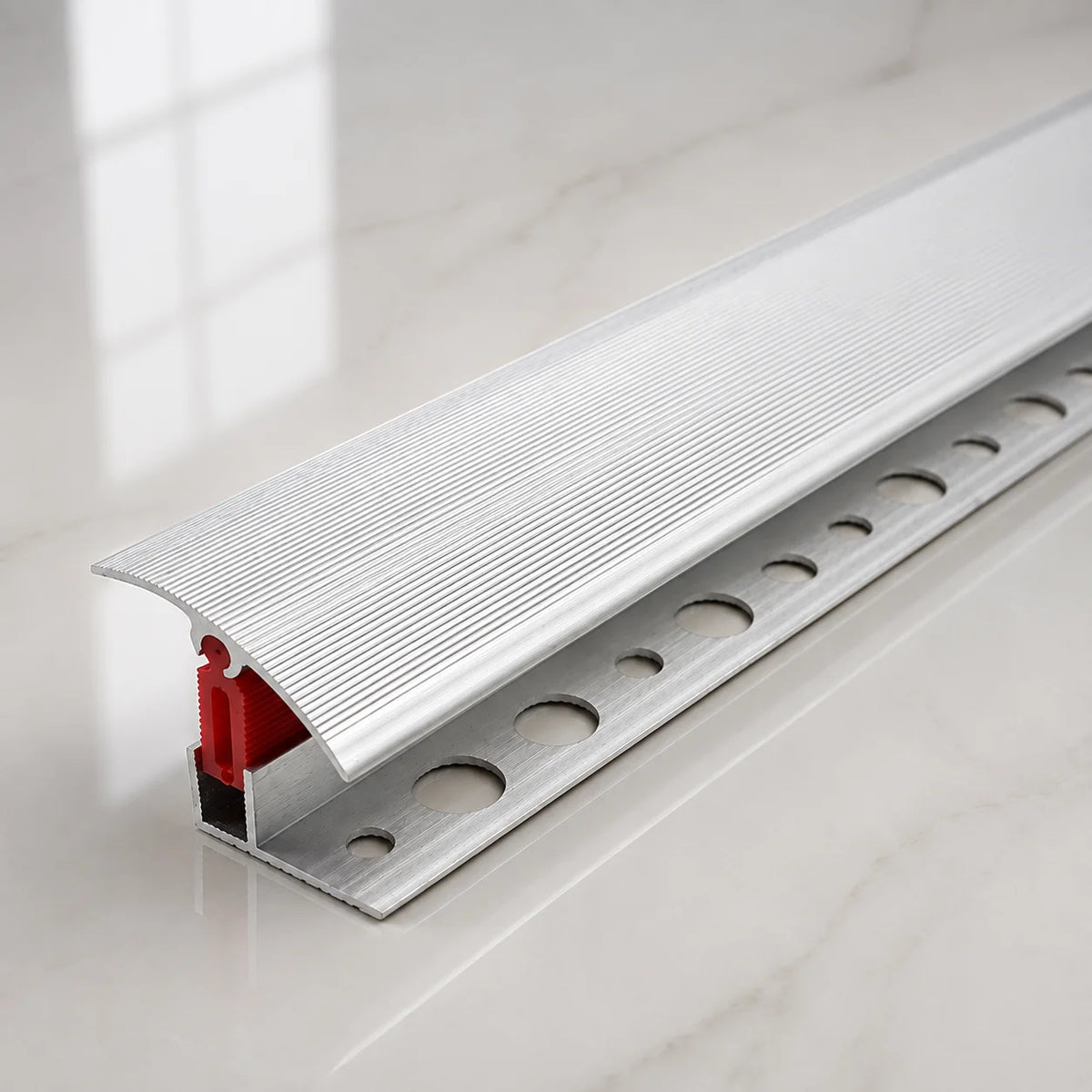

Aluminium Adjustable Height Carpet Door Threshold Strip – 40mm Easy Clip TTG
Pivot Transition Bar for Different Floor Heights and Uneven Levels
Create a neat transition between adjoining floor coverings with our 40mm Aluminium Adjustable Height Carpet Door Threshold Strip. Featuring an Easy Clip TTG pivot system, this versatile transition profile can raise, lower or tilt to accommodate differences between finished floor levels.
The adjustable design makes the threshold particularly useful where carpet meets a hard floor or where two flooring materials do not finish at exactly the same height. It can be used with compatible carpet, laminate, tile, wood, vinyl and LVT flooring.
Small and large clips are supplied to provide flexibility when setting the cover profile at different heights. Once fitted into the aluminium base rail, the upper strip can pivot to follow uneven floor levels and provide a clean transition across the joint.
The durable aluminium profile can be cut to the required doorway width using a standard hacksaw. The base can be secured to compatible wood or concrete subfloors using suitable mechanical fixings, with contact adhesive also identified in the supplied fitting instructions as a base-fixing option.
Key Features
- 40mm-wide adjustable aluminium threshold
- Easy Clip TTG fitting system
- Pivoting transition profile
- Designed for floors at different heights
- Can raise, lower or tilt to suit the floor transition
- Small and large clips included
- Suitable for carpet transitions
- Compatible with laminate flooring
- Suitable for tile and wood flooring
- Compatible with vinyl and LVT
- Durable aluminium construction
- Suitable for compatible wood subfloors
- Suitable for compatible concrete subfloors
- Can be cut to size with a standard hacksaw
- Provides a neat finish across flooring joints
- Suitable for residential and commercial interiors
Product Specifications
| Specification | Details |
|---|---|
| Product Type | Adjustable carpet door threshold / transition bar |
| Profile System | TTG Easy Clip |
| Width | 40mm |
| Material | Aluminium |
| Adjustment | Raise, lower and pivot / tilt |
| Clips Included | Small and large clips |
| Suitable Flooring | Carpet, laminate, tile, wood, vinyl and LVT |
| Suitable Subfloors | Compatible wood and concrete |
| Main Fixing Method | Mechanical fixing with suitable screws |
| Other Base-Fixing Methods | Suitable nails or contact adhesive where appropriate |
| Cutting Method | Standard hacksaw |
| Main Function | Transition between different or uneven floor heights |
| Exact Height Range | Not specified in the supplied information |
| Length | Not specified in the supplied information |
| Available Colours | Not specified in the supplied information |
| Recommended Use | Domestic and commercial interior floor transitions |
Benefits of This Adjustable Carpet Door Threshold

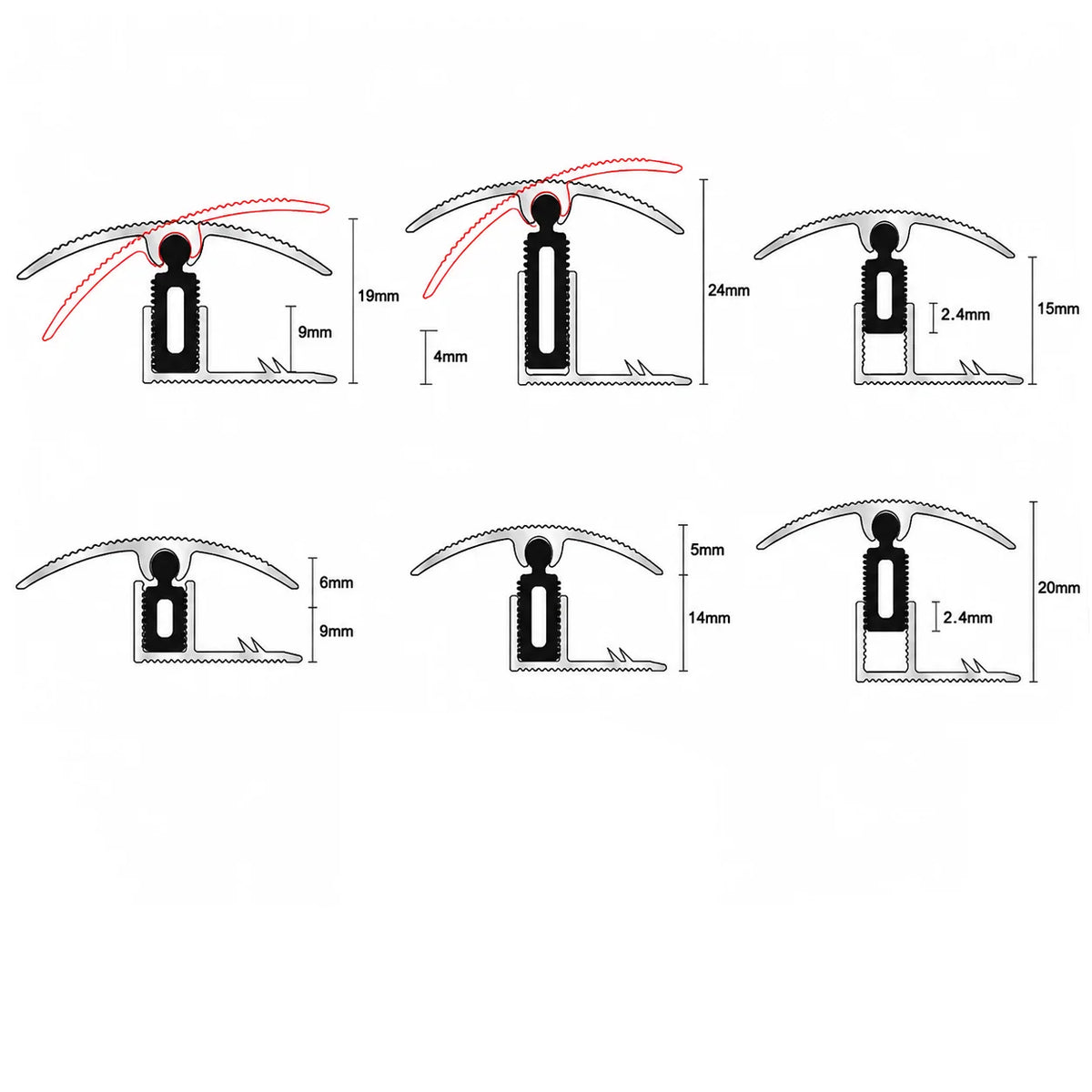

Adjustable for Different Floor Heights
The TTG system allows the upper cover strip to raise or lower according to the finished height of the adjoining floor coverings.
Pivoting Design for Uneven Levels
The top profile can tilt where the two floor surfaces are not perfectly level, helping create a cleaner transition than a rigid fixed-angle strip.
Small and Large Clips Included
Different clip sizes provide additional adjustment options when fitting the threshold across flooring materials of varying thicknesses.

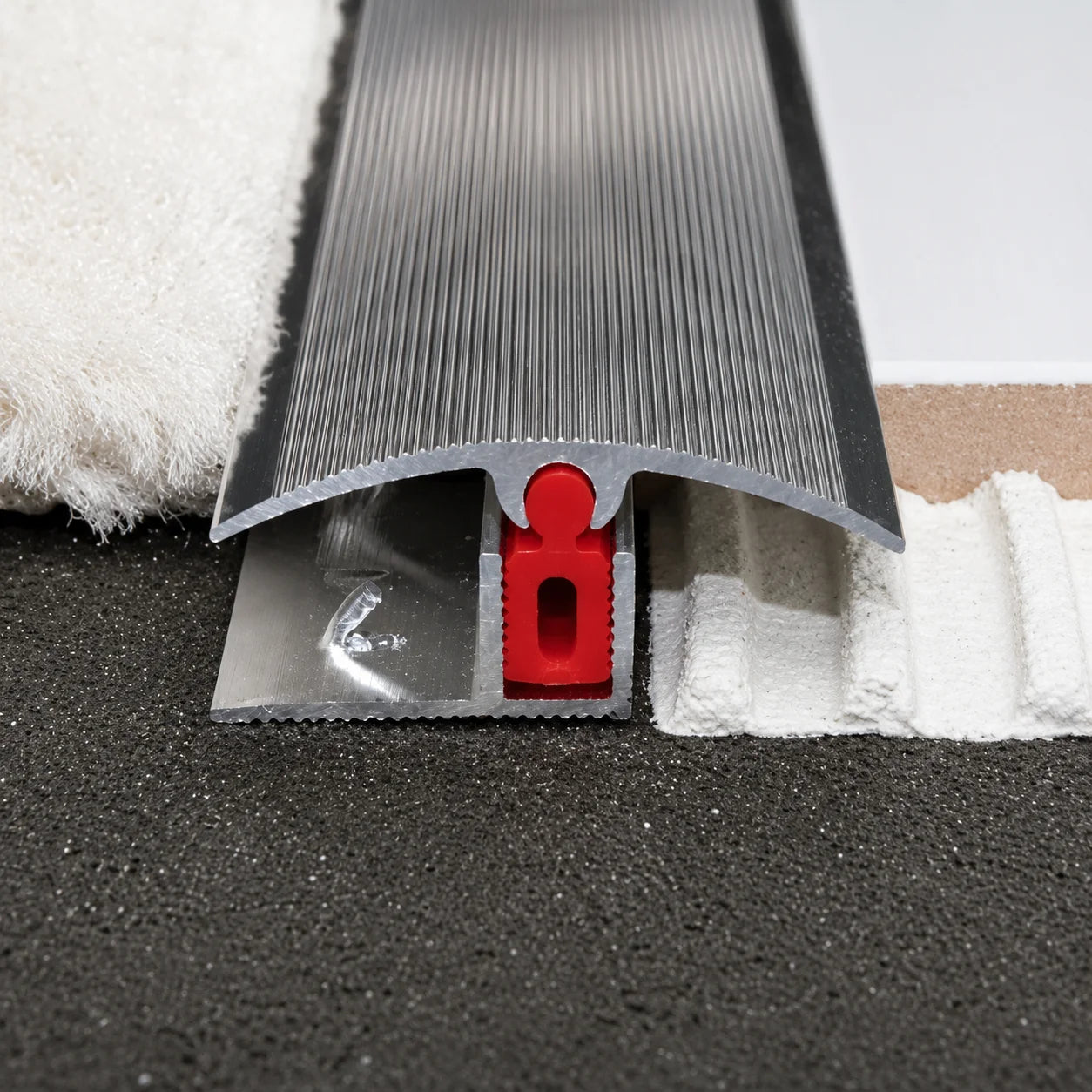

Works with Multiple Flooring Types
Although particularly useful for carpet transitions, the profile is also suitable for compatible laminate, tile, wood, vinyl and LVT flooring.
Cut to Suit Your Doorway
The aluminium profile can be shortened with a standard hacksaw, allowing it to be adapted to different doorway and floor-joint widths.
Applications
This adjustable aluminium threshold is suitable for:
- Carpet-to-laminate transitions
- Carpet-to-tile transitions
- Carpet-to-wood flooring
- Carpet-to-vinyl transitions
- Carpet-to-LVT flooring
- Laminate-to-tile joints
- Wood-to-tile transitions
- Vinyl-to-laminate flooring
- Floors at different finished heights
- Uneven floor transitions
- Doorways between adjoining rooms
- Residential interiors
- Offices and workplaces
- Commercial flooring installations
- Flooring refurbishment projects
- Replacement transition profiles
Installation Guide
Easy Clip TTG Installation
- Measure the doorway or flooring joint carefully.
- Check that the 40mm cover profile is wide enough to bridge the gap between the two floor coverings.
- Measure and mark the required profile length.
- Cut the aluminium to size using a standard hacksaw if required.
- Smooth any sharp cut edges using a suitable metal file.
- Position the aluminium base rail centrally within the flooring gap.
- Secure the base to the compatible wood or concrete subfloor.
- Use suitable screws or nails for mechanical fixing, or compatible contact adhesive where appropriate for the installation.
- Select the small or large clips according to the required profile position.
- Slide the clips onto the underside of the cover strip.
- Position the first clips approximately 2–3cm from each end.
- Space the remaining clips evenly along the profile.
- Align the clips carefully with the aluminium base rail.
- Apply even downward pressure to engage the clips with the base.
- Use a rubber mallet to tap the cover gently into position where necessary.
- Allow the cover strip to pivot to suit any difference between the two finished floor levels.
- Check that the threshold is firmly locked into place and provides a stable transition before use.
Installation Tip
The clip connection is intentionally designed to provide a tight fit. If the clips are difficult to insert, the supplied fitting guidance recommends inserting a red clip upside down and gently tapping it with a rubber mallet before removing it. This can slightly open the slot and make final fitting easier.
Always check for hidden pipes, cables or other services before drilling into the subfloor, and select fixings that are appropriate for the substrate.
Why Choose This Adjustable Aluminium Carpet Door Threshold?
This 40mm adjustable threshold provides a flexible solution where adjoining floors differ in height. Unlike a fixed transition strip, its Easy Clip TTG system allows the cover to raise, lower and pivot to follow the flooring on either side of the joint.
With small and large clips included, compatibility with several popular floor coverings and a cut-to-size aluminium construction, it is suitable for both domestic flooring upgrades and professional commercial installations.
Frequently Asked Questions
What width is this adjustable threshold?
The aluminium cover profile is 40mm wide.
Which flooring types can it be used with?
It is suitable for compatible carpet, laminate, tile, wood, vinyl and LVT flooring.
Can it be used where the two floors are different heights?
Yes. The Easy Clip TTG system is specifically designed to raise, lower and pivot to accommodate different and uneven floor levels.
Are different fitting clips included?
Yes. Small and large clips are supplied to provide adjustment for different flooring heights.
Can the threshold be cut to fit my doorway?
Yes. The aluminium profile can be shortened using a standard hacksaw and the cut edge can then be smoothed with a suitable metal file.
