NSLR50 Tredsafe Vision Light Out Stair Nosing
Description

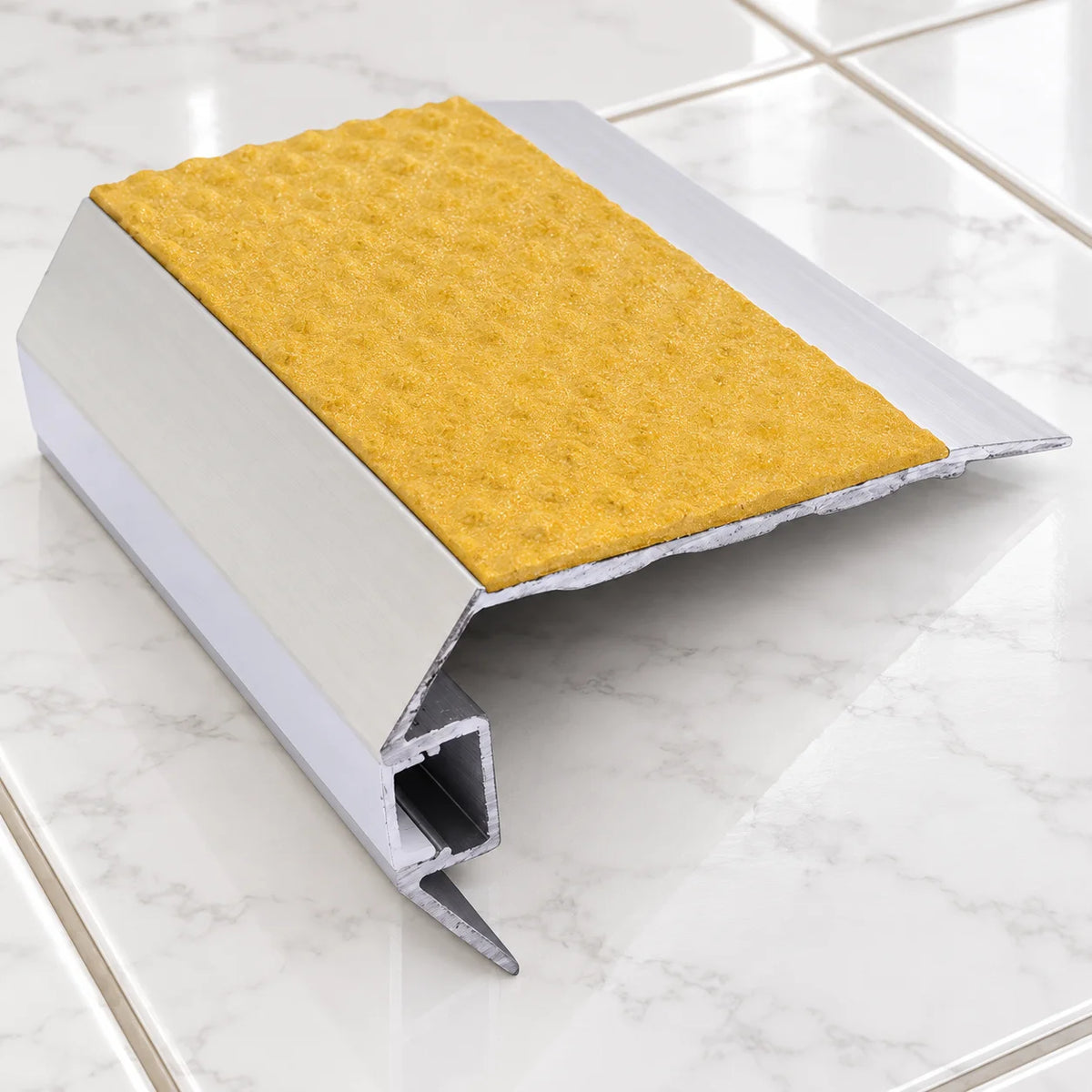

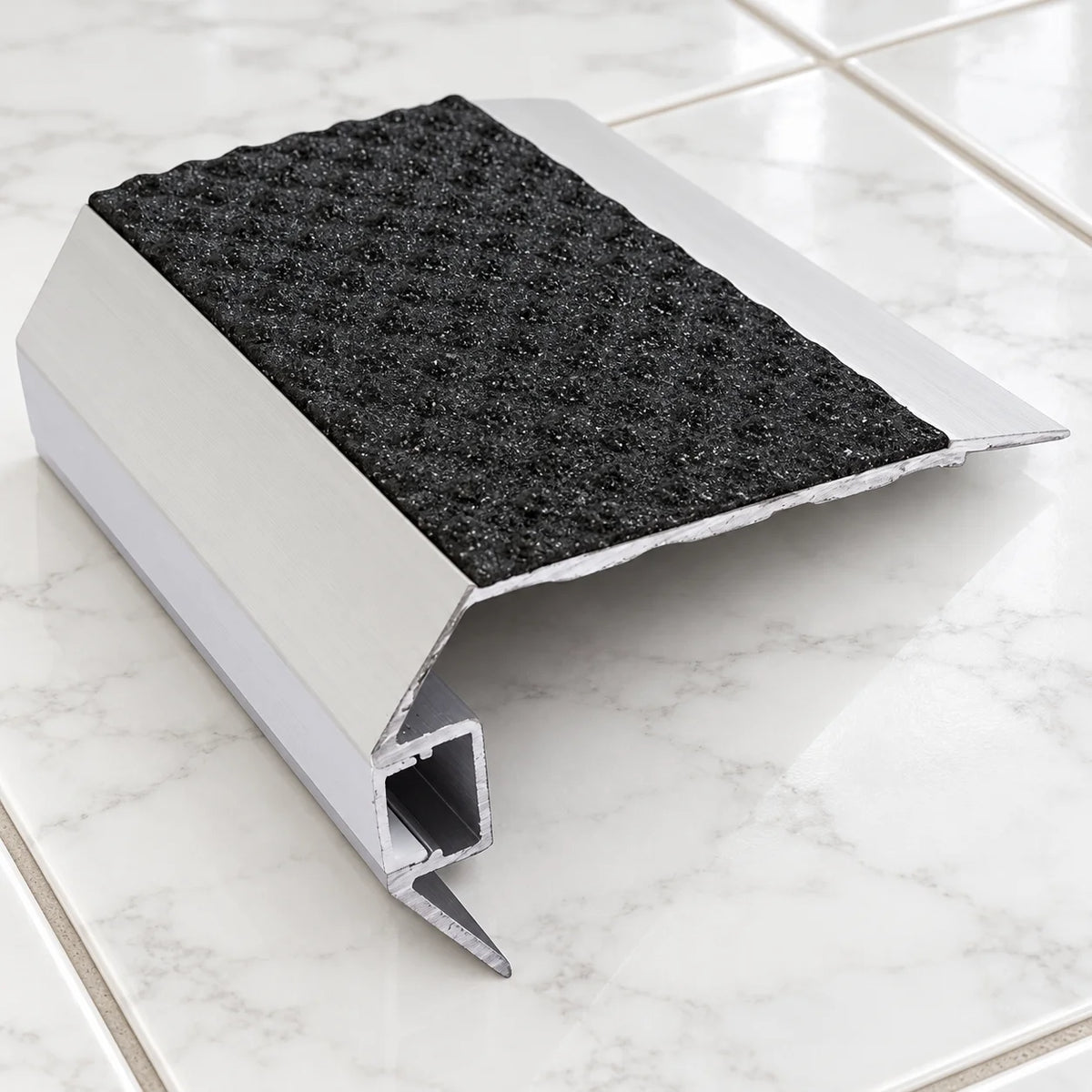

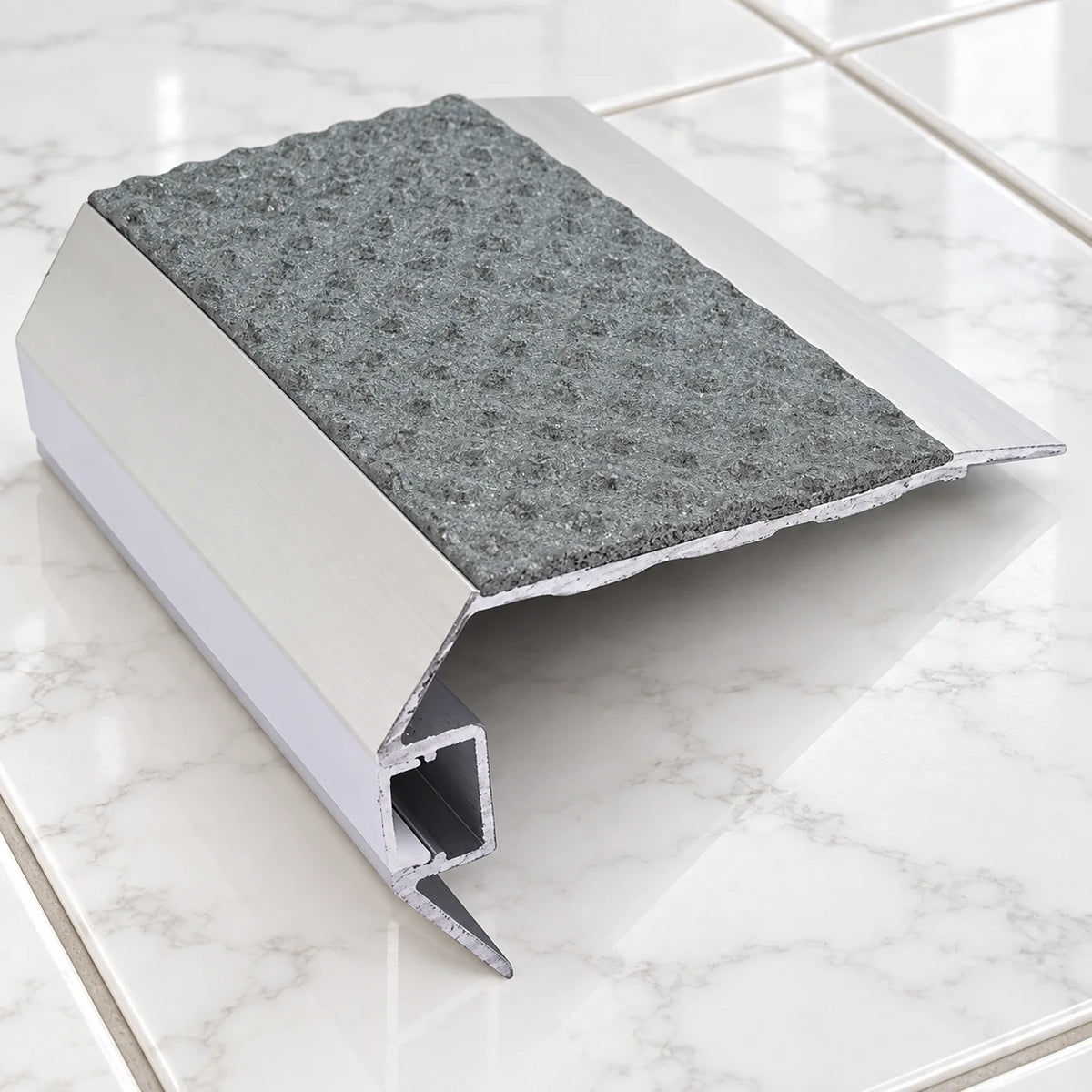

NSLR50 77.5x48.5mm Tredsafe Vision Light Out Stair Nosing
Illuminated Aluminium Stair Edge Profile with Non-Slip Insert
Combine stair-edge protection, grip and architectural lighting with the NSLR50 Vision Light Out Stair Nosing. Designed for commercial interiors, the profile features a robust aluminium body, non-slip PVC insert and integrated lighting channel for compatible LED systems.

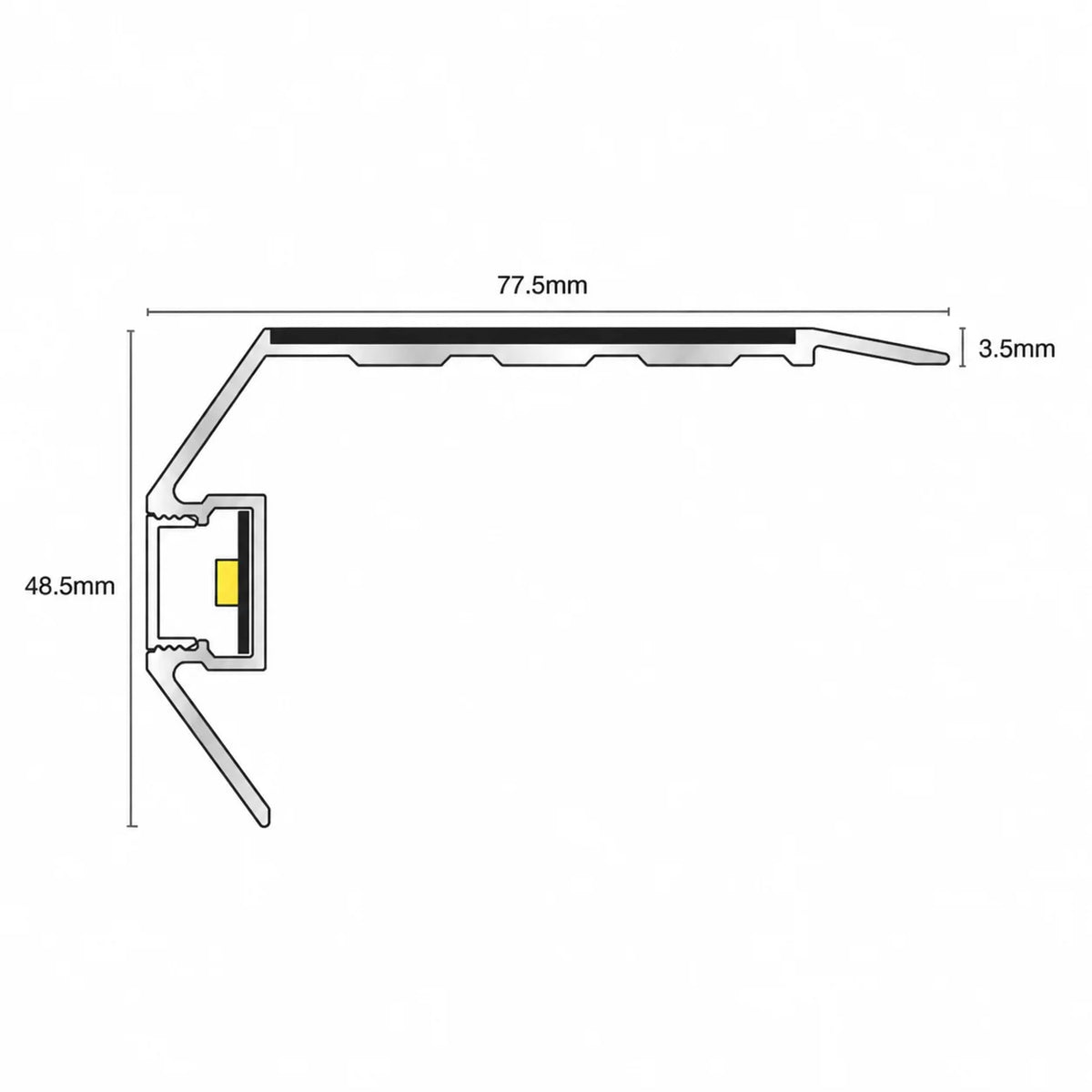

The profile measures 77.5mm across the tread and 48.5mm down the riser. Its Vision Light Out configuration directs illumination outward from the stair edge, helping improve step definition while creating a clean architectural finish.
Supplied in a 2.8m length with an anodised Matt Silver finish as standard, the profile also incorporates a frosted polycarbonate diffuser for smooth light distribution.
Key Features
- 77.5mm tread x 48.5mm riser
- 2.8m profile length
- Commercial-grade aluminium construction
- Tredsafe non-slip PVC insert
- Vision Light Out configuration
- Compatible with standard LED, CCT and RGB lighting
- Frosted polycarbonate diffuser
- Anodised Matt Silver finish
- Other finishes available on request
- Suitable for commercial and architectural interiors
- Custom cutting and drilling available
- NECS50 end caps available separately
- LED tapes and drivers not included
Product Specifications
| Specification | Details |
|---|---|
| Product Type | Illuminated non-slip stair nosing |
| Profile | NSLR50 Vision Light Out |
| Material | Aluminium |
| Size | 77.5 x 48.5mm |
| Length | 2.8m |
| Standard Finish | Anodised Matt Silver |
| Lighting Compatibility | Standard LED, CCT, RGB |
| Insert | Non-slip PVC |
Benefits of This Vision Light Out Stair Nosing
Improved Stair Visibility
The integrated lighting channel helps define the stair edge and improve visibility in low-light environments.
Non-Slip Tredsafe Insert
The PVC-based insert adds grip underfoot and helps provide a more secure stair surface in busy interiors.
Uniform Light Distribution
The frosted polycarbonate diffuser helps soften and distribute compatible LED lighting evenly.
Durable Aluminium Construction
The aluminium profile provides a robust, hard-wearing solution for commercial stair applications.
Professional Architectural Finish
Its illuminated design is well suited to environments where both safety and visual appearance are important.
Applications
Suitable for:
- Cinemas
- Theatres
- Offices
- Hotels
- Hospitality venues
- Retail interiors
- Public buildings
- Commercial staircases
- Architectural lighting projects
- Low-light circulation areas
Installation Guide
- Measure and cut the profile to the required stair width.
- Position the nosing accurately on the stair edge.
- Prepare and secure the profile using suitable fixings or adhesive.
- Install the compatible LED tape and diffuser.
- Fit the non-slip insert securely.
- Connect the lighting system using the appropriate driver and controls.
Electrical installation should follow the requirements of the selected LED lighting system.
Why Choose This NSLR50 Tredsafe Stair Nosing?
The NSLR50 combines stair-edge protection, non-slip performance and integrated lighting capability in one commercial-grade aluminium profile.
Its Tredsafe insert, frosted diffuser and compatibility with standard LED, CCT and RGB systems make it ideal for commercial spaces where clear step definition and architectural lighting are required.
Frequently Asked Questions
What size is the NSLR50 profile?
The stair nosing measures 77.5mm across the tread and 48.5mm down the riser.
What length is supplied?
The standard profile length is 2.8 metres.
What lighting systems can be used?
It is compatible with standard LED tape, CCT and RGB lighting systems.
Are LED tapes and drivers included?
No. LED tapes and drivers must be purchased separately.
Are matching end caps available?
Yes. NECS50 end caps are available separately for completing the profile ends.
